What is an Outrigger Crane?

April 28, 2026

Mobile cranes move heavy loads. But a powerful crane without stability is a safety risk. Crane outriggers solve that problem.

This article covers what a crane outrigger is, how it works, why it matters for safety, and when to use one.

What is a Crane Outrigger?

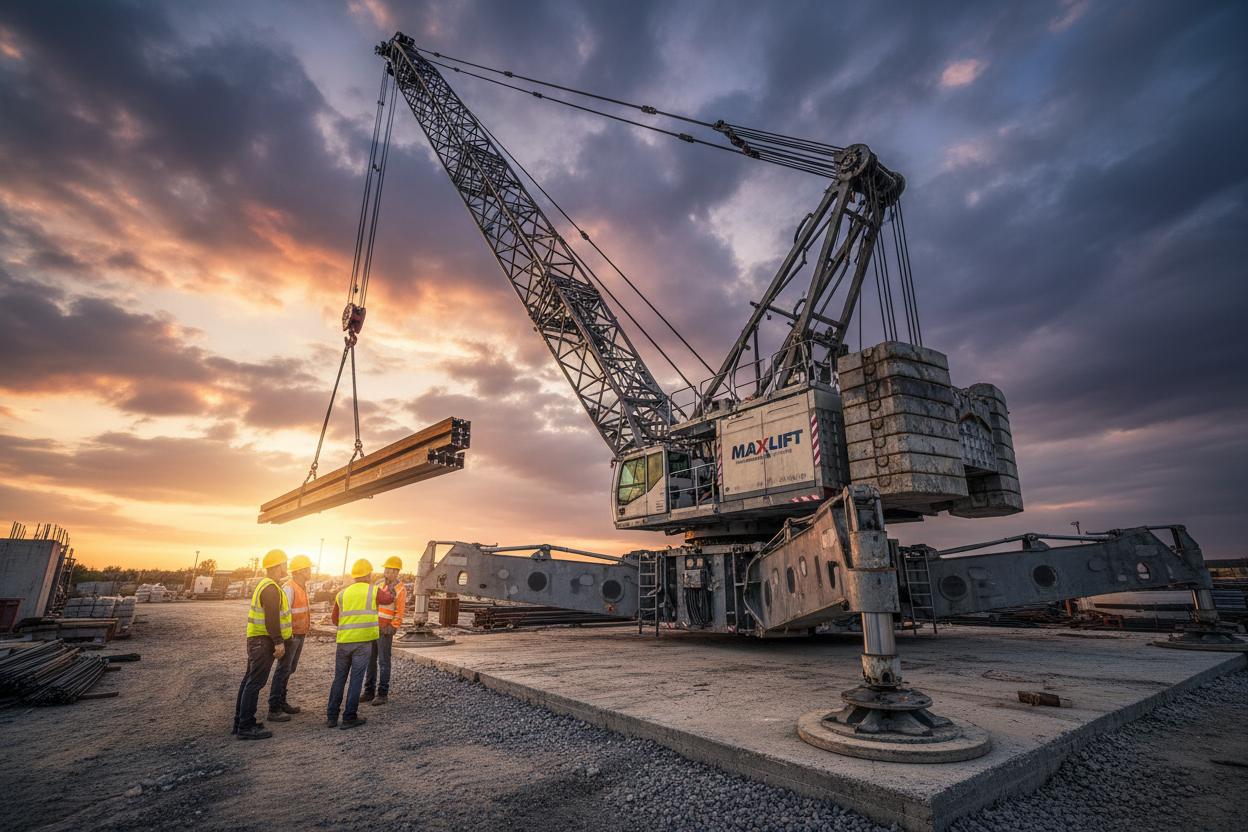

A crane outrigger is an extendable support arm attached to the base of a mobile crane. When deployed, it widens the crane's footprint and increases stability during a lift.

Most cranes have four outriggers. During travel, they retract close to the crane body. On-site, they extend outward and downward to brace the crane before any lift begins.

Every outrigger has three main parts. Beams extend horizontally from the crane to widen the base. Jacks are hydraulic cylinders that push down and lift the crane slightly off its tires. Support pads sit at the bottom of each jack and spread the load across the ground.

Outriggers come in standard and variable models. Variable outriggers adjust to different extension lengths. That gives operators more options on tight sites or around obstacles.

Types of Cranes that Use Outriggers

Not every crane uses outriggers. Several common types do.

All-Terrain Cranes

All-terrain cranes travel on roads and across rough ground without support vehicles. Depending on size, they run on four to eighteen tires. Once on site, outriggers deploy for stability, and counterweights add balance.

These cranes cross sand, gravel, dirt, and uneven ground. They carry higher loads than rough terrain cranes and feature long telescopic booms. A dual-engine system increases weight and keeps the crane steady during heavy lifts.

All-terrain cranes work across construction, energy, urban development, and agriculture. They suit jobs where the site changes frequently or where access is difficult.

Truck-Mounted Cranes

Truck-mounted cranes are fitted directly onto a truck chassis. Integrated outriggers deploy when a lift is needed.

These cranes move quickly between sites and work well for urban delivery and construction tasks.

Rough Terrain Cranes

Rough terrain cranes run on four large rubber tires with four-wheel drive. They are built for sites where ground conditions are poor. Outriggers are standard and extend to stabilize the crane before lifting begins.

These cranes are compact and easy to transport. A single rough terrain crane can replace several pieces of lifting equipment on one site. They are used in construction, mining, disaster relief, and forestry.

How Do Outriggers Work?

When a crane lifts a load away from its center line, tipping forces build up. The further the boom reaches, the greater those forces become. Outriggers counter this by creating a wider, more stable base.

The basic sequence works like this. The crane moves into position on site. Outriggers extend horizontally to widen the base. Hydraulic jacks lower vertically, lifting the crane slightly off its tires. Load-bearing pads spread the pressure across the ground beneath each jack.

Once set up correctly, the crane operates at full rated capacity according to its load chart. Tire compression is removed from the equation. The risk of ground shift under load drops significantly.

Without outriggers deployed, the rated capacity falls. Most manufacturers publish separate load charts for on-rubber lifts and fully outriggered lifts. The difference between the two is not small.

Why Are Outriggers Important for Crane Safety?

Outriggers are not optional on most crane types. They are a core part of safe operation. Here is what they actually do on-site.

They keep the crane balanced. When the boom extends or swings, tipping forces increase. Outriggers create a wider footprint and stop the crane from leaning or shifting under load. A crane that shifts mid-lift is a crane that cannot be controlled.

They prevent tip-overs. A crane without proper support is at real risk of tipping, especially under heavy or unbalanced loads. Outriggers spread crane outrigger loads across a larger area. That lowers the tipping risk significantly and keeps the lift predictable.

They work on poor ground. Not every site has firm, level ground. Sand, gravel, and sloped terrain all create problems for a crane sitting on its tires.

Outriggers lift the crane off its wheels and spread the pressure across a larger surface. The machine gets a stable platform regardless of what sits underneath.

They protect people and equipment nearby. A stable crane reduces the chance of sudden movement or collapse. That matters for workers on the ground, nearby structures, and other equipment operating close to the lift zone.

Outriggers are a small part of the machine but take on a large share of the safety responsibility on any job site.

Cranes With and Without Outriggers

Not every crane is built with outriggers. The Franna crane is a clear example. It is a mobile pick-and-carry crane that uses counterweights and a compact design to move loads over short distances. No outriggers are needed for the work it is designed to do.

Cranes with outriggers deliver better stability. They are the right choice for heavy, stationary, or high-risk lifts. The trade-off is setup time. Outriggers must be deployed and checked before the first lift of the day.

Cranes without outriggers offer faster setup and greater mobility. They suit smaller lifts, indoor work, or jobs that require carrying a load from one point to another. Lifting capacity is more limited compared to a fully outriggered crane.

The right choice comes down to the specific job. Neither type works better across every situation.

When Should a Crane With Outriggers Be Used?

Some situations make outriggers essential rather than optional.

Heavy or awkward loads that exceed what a pick-and-carry crane handles safely.
Rough or uneven ground where tire-only support is not reliable.
Urban sites where precision and stability are both critical.
Tall lifts where the boom extension increases the tipping risk.
Any lift where the load chart specifies full outrigger deployment before work begins.
On high-risk, heavy, or ground-sensitive lifts, outriggers are a requirement – there is no safe alternative.

A Crane Outrigger Keeps Every Lift Safe

A crane outrigger widens the base, balances the load, and keeps the machine stable when forces are at their highest. Understanding crane outrigger parts and how crane outrigger loads are managed helps operators and site managers make better calls on every job.
